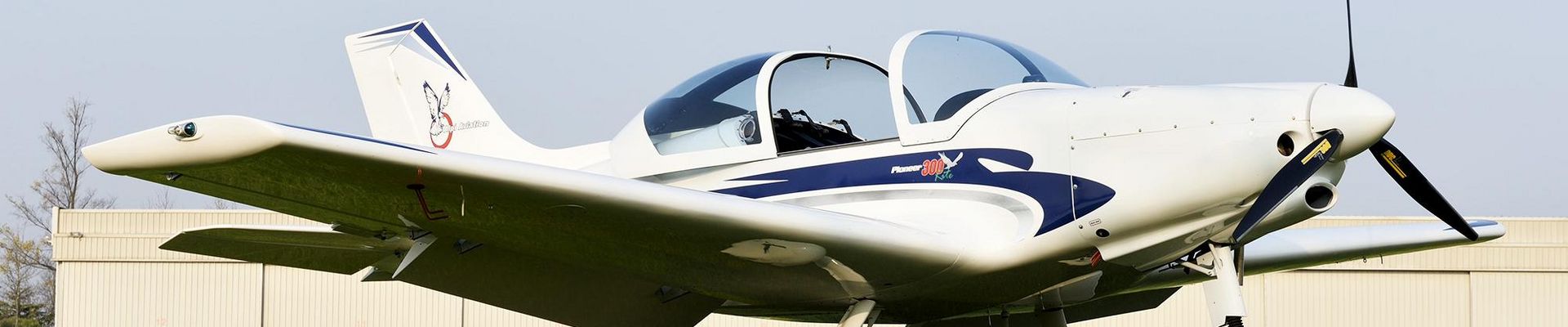

OUR AIRCRAFTS - PIONEER 300 FG
Simplicity meets performance
The Pioneer 300 FG is the perfect compromise within Pioneer Aircraft range. It is a little bit slower than the Pioneer
300 (with retractable gear) but it’s faster than the Pioneer 200.
It is the right choice for anyone who likes speed and does not want to give up a fixed landing gear.
It smoothly balances elegance, simplicity and performance, with its 222 km cruising speed.
It’s a robust, reliable and uncomplicated aircraft.
The Pioneer 300 FG is particularly suitable for flight school, clubs looking for a fast, comparatively light aircraft.
DESCRIPTION
≫ Low-wing cantilever
≫ Stable tripod fixed landing gear
≫ Steerable nose wheel
≫ Double cabin next to each other with double tax
≫ Removable wings
≫ Comfortable seats
≫ Attractive interior design
≫ Excellent all-round view
TECHNICAL DATA
» Dimensions P 300 FG
» Wing span 8.10 m
» Wing area 11 m²
» Length 6.25 m
» Cabin width 1.05 m
WEIGHTS
» Empty weight 285 kg
» Max take off weight (ULM) 472.5 kg
» Max weight (LTF-UL 2019) 560 kg
» Payloads and load multiples
» In flight load factor +4 / -2 g
» Tank capacity 2 x 40 l
» Additional tank (optional) 32 l
» Baggage volume 225 l / max. 20 kg
Performance
» Vne 275 km/h
» Maximum level speed 260 km/h
» Cruise speed (75%) 225 km/h
» Green Area air speed indicator (Vra) 225 km/h
» Stall speed 65 km/h
» Best climb rate speed 120 km/h
» Steep climb rate speed 100 km/h
» Best rate of climb (MTOW) 1000ft/min
» Roll rate 90° g/s
» Glide ratio 12/1
» Range at 75% ca. 1000 km
» Fuel consumption at 75% ca.18 l/h
» Service ceiling 6000 m
» Rotax 912 80 hp Engine
» Take off distance 120 m
» Landing distance 120 m Vne
General
» Rotax 912 UL Engine
» Fixed gear
» 2 x 40 l wing fuel tank
» Electric Flaps
» Elevator Electric Trim
» Radio Prewiring
» Central console with storage compartment
» Cabin Fresh Air Intake
» 12 Volt on-board socket
» Aerospace standard automatic fuses
» Essential tool case
» Water resistant Canopy cover
» Leather interiors by choice
» White Paint with Sticker Livery
Instruments
» Air speed indicator
» Altimeter
» Compass
» Variometer
» RPM with Hour Counter
» 2 fuel level indicators
» CHT Indicator
» Oil Temperature gauge
» Oil Pressure gauge
» Voltmeter
» Amperemeter
